SAE szabványos szénacél rozsdamentes acél O-gyűrűs tömítőgyűrű hidraulikus adapterekhez

ORFS sealing for adapters is an important sealing method that can effectively prevent liquid or gas leakage and ensure the normal operation of the system. It has the advantages of simple structure, easy installation, and high pressure resistance, and is widely used in hydraulic systems, automotive industry, and other fields.

ÉRDEKLŐDÉS
Leírás

The ORFS hydraulic adapter that the effect of the sealing ring is closely related to the size of the sealing groove on its end face. The ORFS adapters are made with carbon steel and stainless steel, the size from -04 to -32. The product’s shape can be made Male to Male, Male to Female, Female to Female and include different style for straight, elbow, tee and cross.

nem definiáltFS2403
nem definiáltFS2404
FS6400
FS6403
1FG
1FM
Műszaki adatok

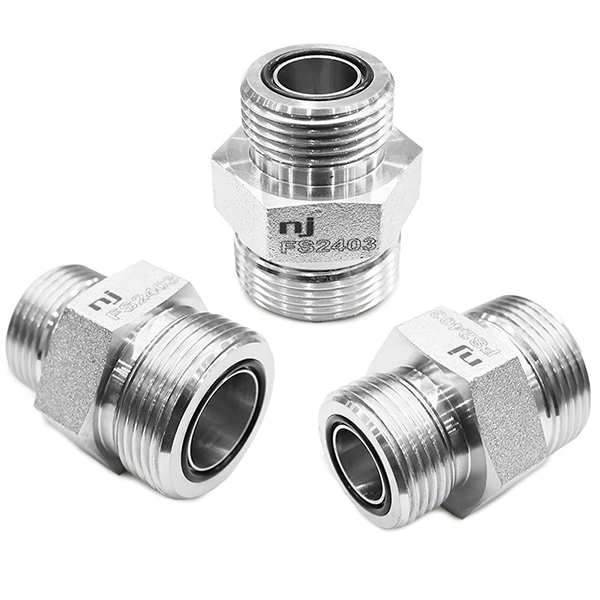

MALE ORFS to male ORFS MALE STRAIGHT ADAPTOR (FS2403)

A szál B szál Cikkszám L E F H1
Gondolatjel ORFS Gondolatjel ORFS mm mm mm mm
-09 9 / 16-18 -09 9 / 16-18 1F-0909 27 10 10 15.88
-11 11 / 16-16 -09 9 / 16-18 1F-1109 30 11 10 19.05
-11 11/16 -11 11 / 16-16 1F-1111 31 11 11 19.05
-13 13 / 16-16 -11 11 / 16-16 1F-1311 34 13 11 22.23
-13 13 / 16-16 -13 13 / 16-16 1F-1313 35 13 13 22.23
-16 1-14 -13 13 / 16-16 1F-1613 40 16 13 26.97
-16 1-14 -16 1-14 1F-1616 43 16 16 26.97
-19 1.3 / 16-12 -13 13 / 16-16 1F-1913 43 17 13 31.75
-19 1.3 / 16-12 -16 1-14 1F-1916 46 17 16 31.75
-19 1.3 / 16-12 -19 1.3 / 16-12 1F-1919 47 17 17 31.75
-23 1.7 / 16-12 -19 1.3 / 16-12 1F-2319 49 18 17 38.10
-23 1.7 / 16-12 -23 1.7 / 16-12 1F-2323 49 18 18 38.10
-27 1.11 / 16-12 -23 1.7 / 16-12 1F-2723 51 18 18 44.45
-27 1.11 / 16-12 -27 1.11 / 16-12 1F-2727 51 18 18 44.45
-32 2-12 -27 1.11 / 16-12 1F-3227 53 18 18 53.98
-32 2-12 -32 2-12 1F-3232 53 18 18 53.98

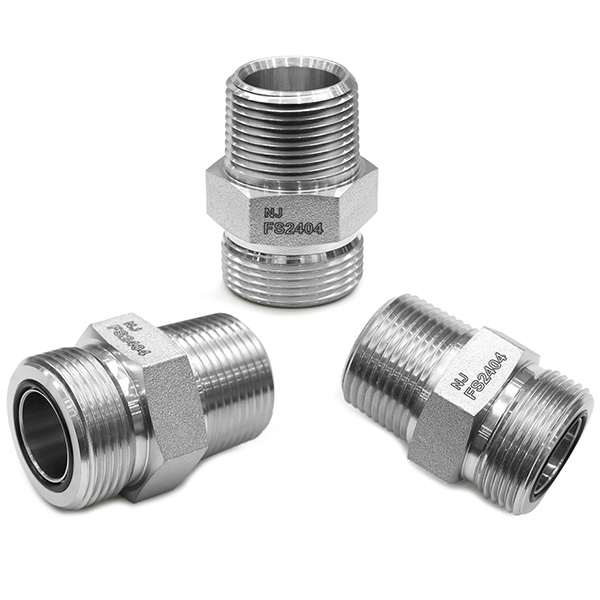

ORFS Male x NPT Male Straight Adaptor (FS2404)

A szál B szál Cikkszám L E F H1
Gondolatjel ORFS Gondolatjel NPT mm mm mm mm
-09 9 / 16-18 -02 1 / 8-27 1FN-0902 27 10 10 15.9
-09 9 / 16-18 -04 1 / 4-18 1FN-0904 32 10 15 15.9
-09 9 / 16-18 -06 3 / 8-18 1FN-0906 32 10 15 19.1
-09 9 / 16-18 -08 1 / 2-14 1FN-0908 38 10 20 23.8
-11 11 / 16-16 -02 1 / 8-27 1FN-1102 29 11 10 19.1
-11 11 / 16-16 -04 1 / 4-18 1FN-1104 34 11 15 19.1
-11 11 / 16-16 -06 3 / 8-18 1FN-1106 34 11 15 19.1
-11 11 / 16-16 -08 1 / 2-14 1FN-1108 39 11 20 23.8
-13 13 / 16-16 -06 3 / 8-18 1FN-1306 37 13 15 22.2
-13 13 / 16-16 -08 1 / 2-14 1FN-1308 42 13 20 23.8
-13 13 / 16-16 -12 3 / 4-14 1FN-1312 43 13 20 31.8
-13 13 / 16-16 -16 1-11.5 1FN-1316 46 13 25 34.9
-16 1-14 -08 1 / 2-14 1FN-1608 46 16 20 27.0
-16 1-14 -12 3 / 4-14 1FN-1612 46 16 20 31.8
-16 1-14 -16 1-11.5 1FN-1616 56 16 25 38.1
-19 1.3 / 16-12 -08 1 / 2-14 1FN-1908 49 18 20 31.8
-19 1.3 / 16-12 -12 3 / 4-14 1FN-1912 49 18 20 31.8
-19 1.3 / 16-12 -16 1-11.5 1FN-1916 52 18 25 38.1
-23 1.7 / 16-12 -12 3 / 4-14 1FN-2312 51 18 20 38.1
-23 1.7 / 16-12 -16 1-11.5 1FN-2316 56 18 25 38.1
-23 1.7 / 16-12 -20 1.1 / 4-11.5 1FN-2320 58 18 25 42.9
-27 1.11 / 16-12 -16 1-11.5 1FN-2716 58 18 25 44.5
-27 1.11 / 16-12 -20 1.1 / 4-11.5 1FN-2720 58 18 25 44.5
-32 2-12 -24 1.1 / 2-11.5 1FN-3224 61 18 26 54

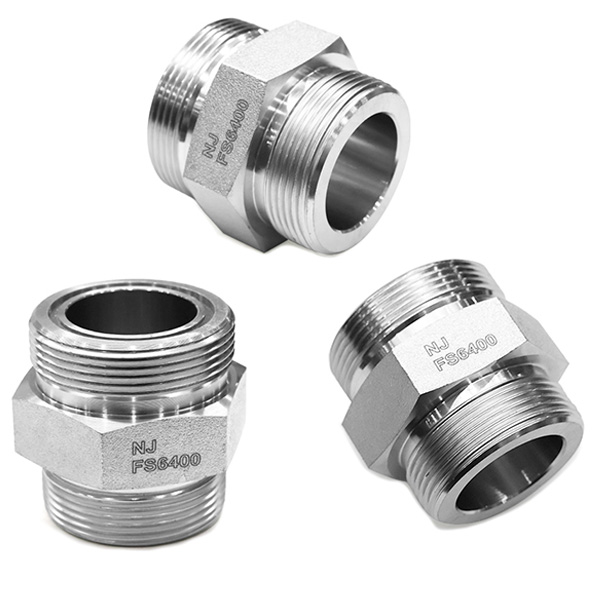

ORFS Male x UNO Male Straight Adaptor (FS6400)

A szál B szál Cikkszám L E F H1
Gondolatjel ORFS Gondolatjel UNO mm mm mm mm
-09 9 / 16-18 -07 7 / 16-20 1FO-0907 29 10 9 15.9
-09 9 / 16-18 -09 9 / 16-18 1FO-0909 31 10 10 19.1
-09 9 / 16-18 -12 3 / 4-16 1FO-0912 34 10 11 22.2
-11 11 / 16-16 -07 7 / 16-20 1FO-1107 34 11 9 19.1
-11 11 / 16-16 -09 9 / 16-18 1FO-1109 32 11 10 19.1
-11 11 / 16-16 -12 3 / 4-16 1FO-1112 35 11 11 22.2
-11 11 / 16-16 -14 7 / 8-14 1FO-1114 39 11 13 27.0
-13 13 / 16-16 -07 7 / 16-20 1FO-1307 36 13 9 22.2
-13 13 / 16-16 -09 9 / 16-18 1FO-1309 37 13 10 22.2
-13 13 / 16-16 -12 3 / 4-16 1FO-1312 37 13 11 22.2
-13 13 / 16-16 -14 7 / 8-14 1FO-1314 40 13 13 27.0
-13 13 / 16-16 -17 1.1 / 16-12 1FO-1317 44 13 15 31.8
-13 13 / 16-16 -21 1.5 / 16-12 1FO-1321 46 13 15 38.1
-16 1-14 -12 3 / 4-16 1FO-1612 45 16 11 27.0
-16 1-14 -14 7 / 8-14 1FO-1614 43 16 13 27.0
-16 1-14 -17 1.1 / 16-12 1FO-1617 47 16 15 31.8
-16 1-14 -21 1.5 / 16-12 1FO-1621 50 16 15 38.1
-19 1.3 / 16-12 -12 3 / 4-16 1FO-1912 49 18 11 31.8
-19 1.3 / 16-12 -14 7 / 8-14 1FO-1914 51 18 13 31.8
-19 1.3 / 16-12 -17 1.1 / 16-12 1FO-1917 49 18 15 31.8
-19 1.3 / 16-12 -21 1.5 / 16-12 1FO-1921 50 18 15 38.1
-23 1.7 / 16-12 -17 1.1 / 16-12 1FO-2317 54 18 15 38.1
-23 1.7 / 16-12 -21 1.5 / 16-12 1FO-2321 50 18 15 38.1
-23 1.7 / 16-12 -26 1.5 / 8-12 1FO-2326 52 18 15 47.6
-27 1.11 / 16-12 -21 1.5 / 16-12 1FO-2721 52 18 15 44.5
-27 1.11 / 16-12 -26 1.5 / 8-12 1FO-2726 52 18 15 47.6
-27 1.11 / 16-12 -30 1.7 / 8-12 1FO-2730 54 18 15 54.0
-32 2-12 -26 1.5 / 8-12 1FO-3226 54 18 15 56.2
-32 2-12 -30 1.7 / 8-12 1FO-3230 54 18 15 54.0

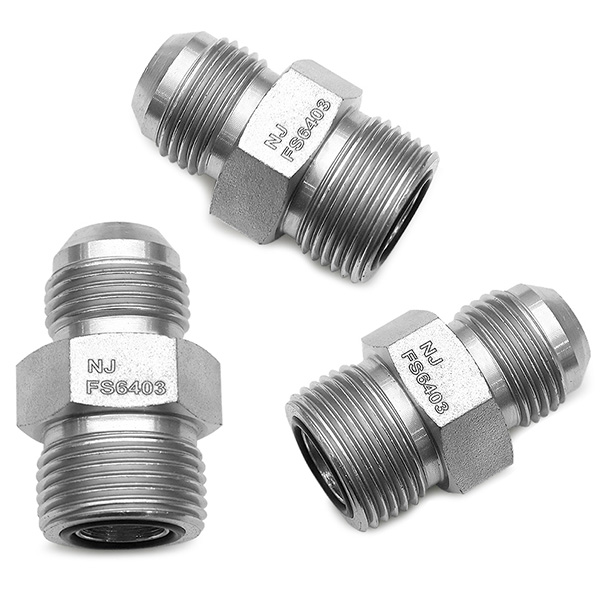

JIC Male x ORFS Male Straight Adaptor (FS6403)

A szál Thread B Cikkszám L E F H1
Gondolatjel JIC Gondolatjel ORFS mm mm mm mm
-07 7 / 16-20 -09 9 / 16-18 1JF-0709 32 14 10 15.9
-07 7 / 16-20 -11 11 / 16-16 1JF-0711 34 14 11 19.1
-09 9 / 16-18 -11 11 / 16-16 1JF-0911 34 14 11 19.1
-12 3 / 4-16 -11 11 / 16-16 1JF-1211 38 17 11 22.2
-12 3 / 4-16 -13 13 / 16-16 1JF-1213 39 17 13 22.2
-14 7 / 8-14 -13 13 / 16-16 1JF-1413 40 19 13 25.4
-14 7 / 8-14 -16 1-14 1JF-1416 46 19 16 27.0
-17 1.1 / 16-12 -16 1-14 1JF-1716 50 22 16 31.8
-17 1.1 / 16-12 -19 1.3 / 16-12 1JF-1719 52 22 17 31.8
-21 1.5 / 16-12 -19 1.3 / 16-12 1JF-2119 55 23 17 38.1
-21 1.5 / 16-12 -23 1.7 / 16-12 1JF-2123 55 23 18 38.1
-26 1.5 / 8-12 -27 1.11 / 16-12 1JF-2627 58 24 18 44.5

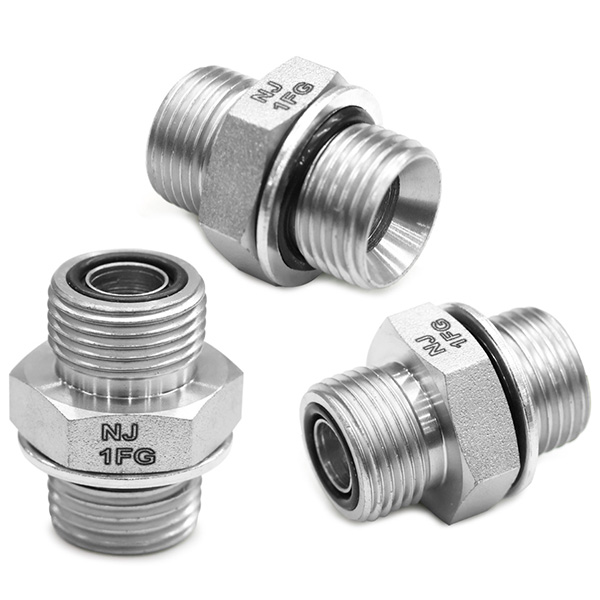

ORFS Male x BSPP Male O-Ring + Retaining Ring Type Straight Adaptor (1FG)

A B Cikkszám L E F H1
Gondolatjel ORFS Gondolatjel BSPP mm mm mm mm
-09 9 / 16-18 -02 1 / 8-28 1FG-0902R 26 10 8 17
-09 9 / 16-18 -04 1 / 4-19 1FG-0904R 30 10 11 19
-09 9 / 16-18 -06 3 / 8-19 1FG-0906R 31 10 11 22
-11 11 / 16-16 -04 1 / 4-19 1FG-1104R 31 11 11 19
-11 11 / 16-16 -06 3 / 8-19 1FG-1106R 31 11 11 22
-11 11 / 16-16 -08 1 / 2-14 1FG-1108R 34 11 15 27
-13 13 / 16-16 -06 3 / 8-19 1FG-1306R 34 13 11 22
-13 13 / 16-16 -08 1 / 2-14 1FG-1308R 35 13 15 27
-13 13 / 16-16 -12 3 / 4-14 1FG-1312R 43 13 15 32
-16 1-14 -08 1 / 2-14 1FG-1608R 42 16 15 27
-16 1-14 -12 3 / 4-14 1FG-1612R 45 16 15 32
-19 1.3 / 16-12 -08 1 / 2-14 1FG-1908R 45 17 15 32
-19 1.3 / 16-12 -12 3 / 4-14 1FG-1912R 45 17 15 32
-19 1.3 / 16-12 -16 1-11 1FG-1916R 50 17 19 41
-23 1.7 / 16-12 -12 3 / 4-14 1FG-2312R 48 18 19 41
-23 1.7 / 16-12 -16 1-11 1FG-2316R 49 18 19 41
-23 1.7 / 16-12 -20 1.1 / 4-11 1FG-2320R 50 18 19 50
-27 1.11 / 16-12 -20 1.1 / 4-11 1FG-2720R 55 18 19 50
-27 1.11 / 16-12 -24 1.1 / 2-11 1FG-2724R 58 18 19 55
-32 2-12 -24 1.1 / 2-11 1FG-3224R 58 18 19 55

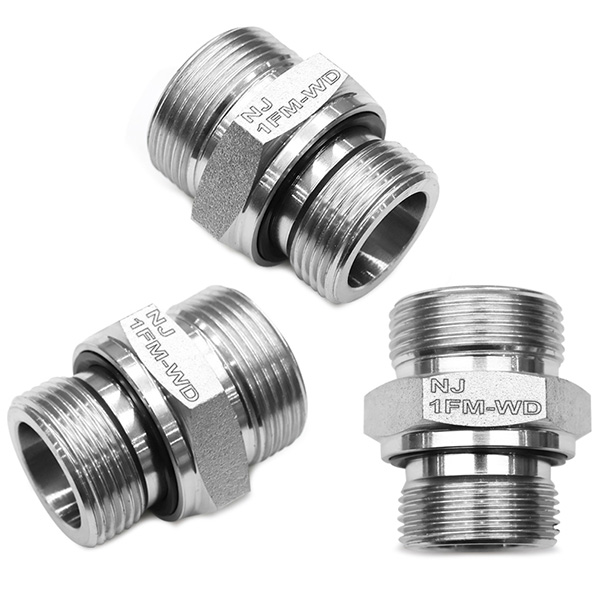

ORFS Male x METRIC Male (Encapsulated Seal) Straight Adaptor (1FM)

A B Cikkszám L E F H1
Gondolatjel ORFS Gondolatjel MM mm mm mm mm
-09 9 / 16-18 -12 12x1.5 1FM-0912 31 10 12 17
-11 11 / 16-16 -14 14x1.5 1FM-1114 33 11 12 19
-11 11 / 16-16 -16 16x1.5 1FM-1116 33 11 12 22
-11 11 / 16-16 -18 18x1.5 1FM-1118 34 11 12 24
-13 13 / 16-16 -18 18x1.5 1FM-1318 35 13 12 24
-13 13 / 16-16 -22 22x1.5 1FM-1322 39 13 14 27
-16 1-14 -22 22x1.5 1FM-1622 42 16 14 27
-19 1.3 / 16-12 -22 22x1.5 1FM-1922 45 18 14 32
Részletek

ORFS adapter have multiple advantages, including high pressure resistance, good sealing performance, wear and corrosion resistance, quick connection and disassembly, simple structure, and low cost, making them a recommended connection assembly in hydraulic systems. NJ provide high-quality ORFS adapters, the safety and reliability can be guaranteed.

1. Salt spray test reaches 120 hours.

2. Allow material changes, such as 316SS.

3. 40000+ stock of SAE, BSP METRIC adater and No MOQ requirment from stock.

4. Fast delivery in 7-15 days.

5. 24hours sales team service.

6. OEM project accepted.
